Warehouse Rack---T-Post shelf

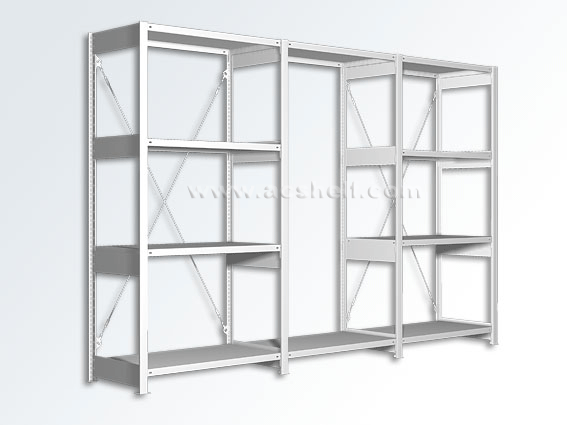

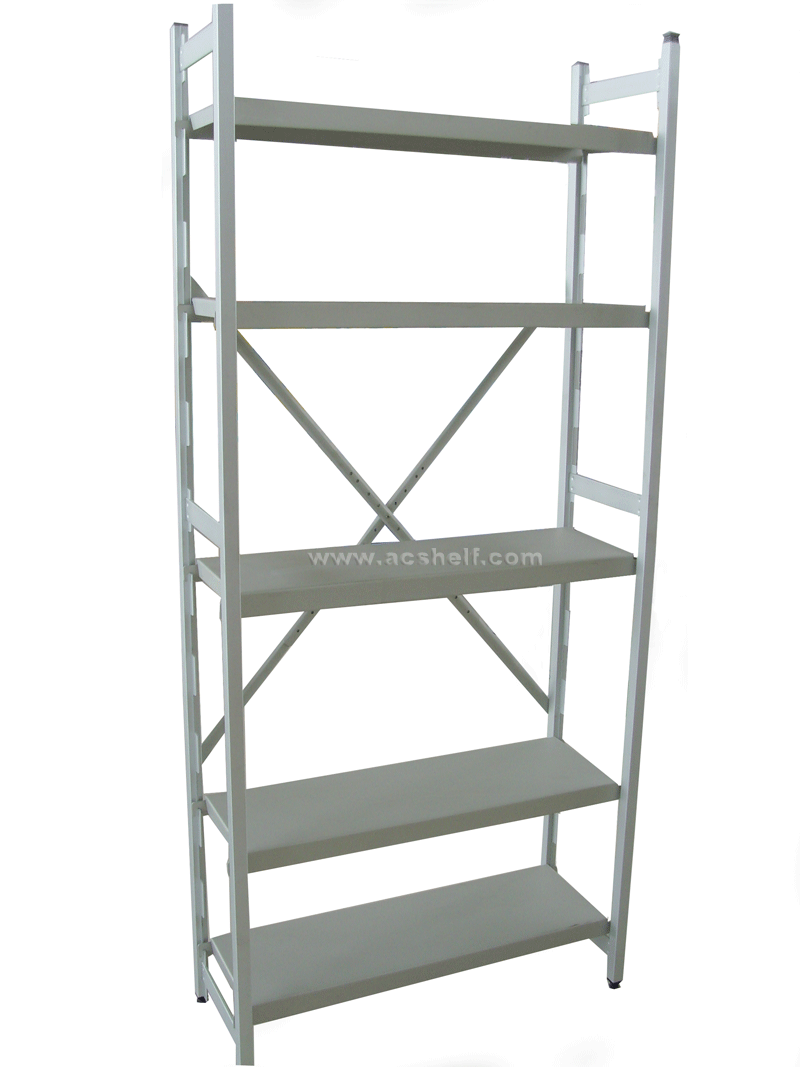

T-Post Shelf
Enlarge The Picture

=specifications=

T-post shelf can save a lot of space, be widely used in office, warehouse and other surroundings. It is low cost, reliable, easily assembled and disassembled. Depend on different usage; it can be assembled in many different arrangements.

Height:2000/2500/3000mm Layer option:3-10 layers
Length (mm) Depth(mm) Loading Capacity per Layer
800 350 190
800 400 220
800 450/500/550 250
1000 350 190
1000 400 220
1000 450/500/550 250
1200 350 150
1200 400 170
1200 450/500/550 200
1500 350 150
1500 400 170
1500 450/500/550 200
1800 350 110
1800 400 130
1800 450/500/550 150
