| Medium Duty Rack | |
| Enlarge The Picture |
| Warehouse Rack---Medium Duty Rack |
|
|
|
| Medium Duty Rack | |
| Enlarge The Picture |
| =specifications= |
| Medium Duty Rack can well enhance the utilize rate of warehouse and work efficiency, easy to assemble and unassemble and adjust the distance of distance freely. Each layer can be equipped with the iron shelf and wood shelf as well as adopt the way of salver's keeping and fetching. It is efficient to cooperate with the forked vehicle, manual work and convenient store and get the goods. |
| (Loading Capacity for Beam) |
| Size（mm） | Unit of Measurement | Length(mm) | ||||
| 960 | 1260 | 1560 | 1860 | 2010 | ||
| 50×30 P beam
50×30 Square Tube beam |
Kg | 896 | 520 | 339 | 239 | 204 |
| 60×40 P beam
60×40 Square Tube beam |
Kg | 1803 | 1047 | 683 | 480 | 411 |
| 80×50 P beam
80×40 Square Tube beam |
Kg | 2000 | 2000 | 1500 | 1100 | 967 |

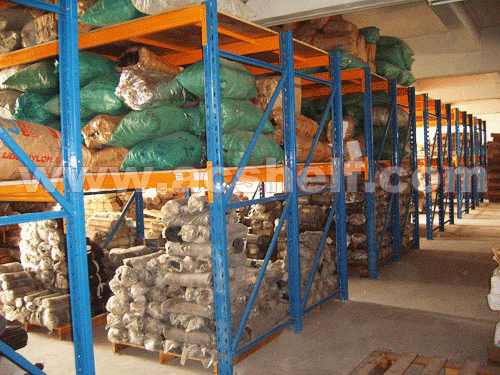

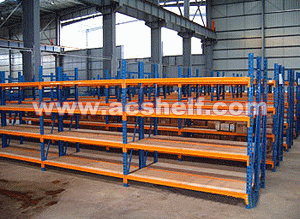

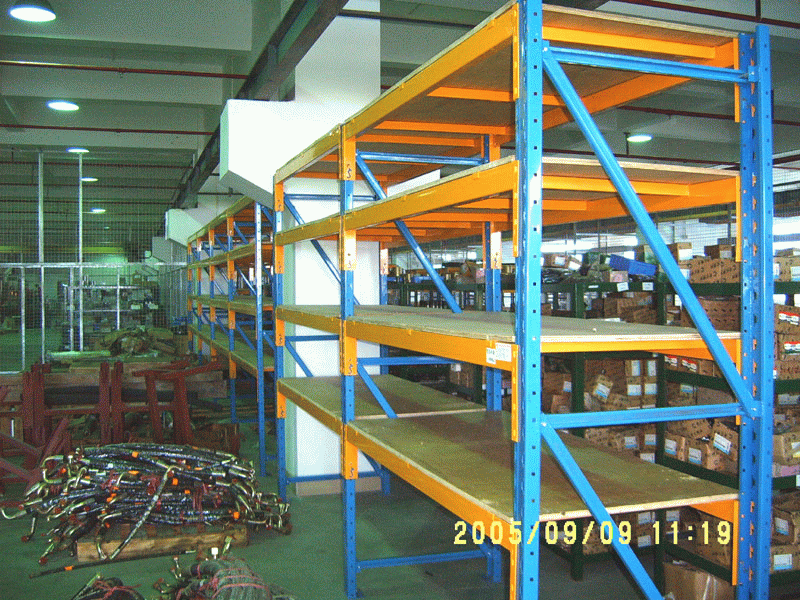

| =Other Pictures= |
|
|
|
 |
|
|
|
|
|
|
 |
|
|
|
|
|
|
 |
