Warehouse Rack---Pallet Rack

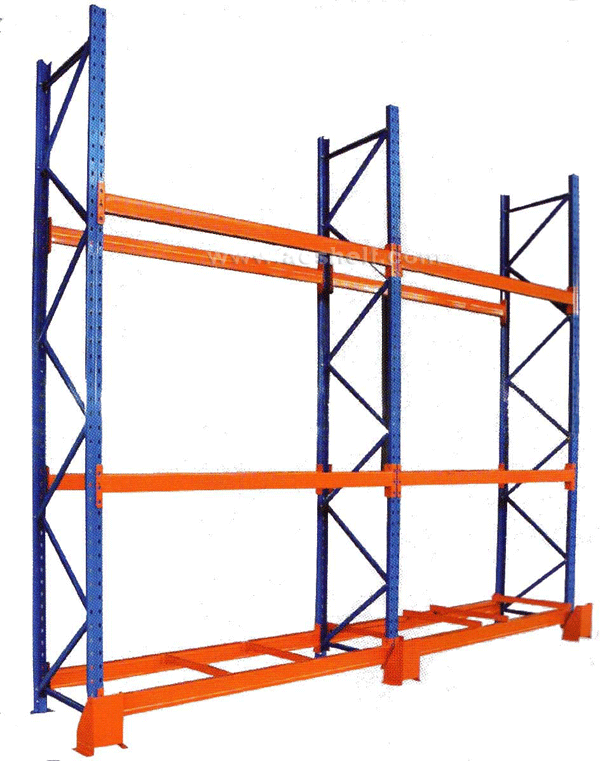

Pallet Rack
Enlarge The Picture
　
=specifications=
Heavy-duty warehouse shelf adopt the advance armor plate to press into the mould., which it can reach at 12 meters without any juncture. We select the high quality square steel as the materials of beam with the strong bearing capacity and uneasy to distortion. The hanging pieces between the beam and upright insert as the bulgy column, good connection and convenient assemble and disassemble as well as using the lock nail to prevent the forktruck to enkindle the beam. The surfaces of all the shelves treat through the working procedure of decreasing, derusting, involucra forming and static spraying,etc in order to avoid corrupt and rust then got a good performance .It is available to use in the large warehouse and logistic center ,etc.

Loading Capacity for Beam

Size（mm）

Unit of Measurement

Length(mm)
L1500 L1800 L2000 L2300 L2500 L2700 L3000 L3300
80×50 Box beam Kg 3360 2333 1890 1429 1210 1037 840 694
100×50 Box beam Kg 4000 3928 3182 2406 2036 1746 1414 1169
110×50 Box beam Kg 4000 4000 3870 2926 2477 2123 1720 1421
120×50 Box beam Kg 4000 4000 4000 3692 3125 2679 2170 1793
140×50 Box beam Kg 4000 4000 4000 4000 4000 3854 3122 2580
　

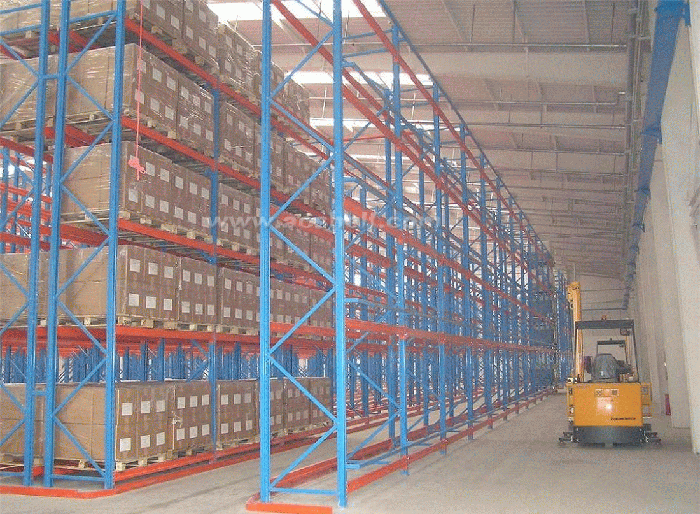

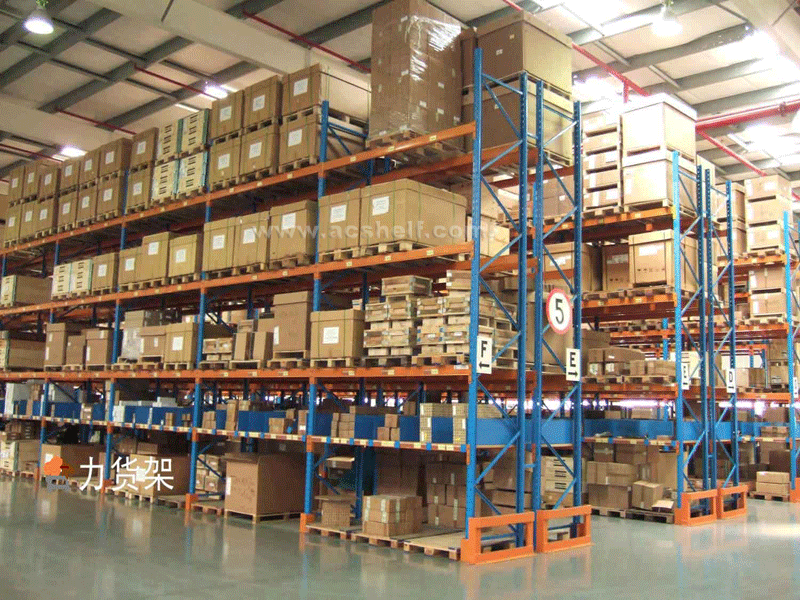

=Other Pictures=
