Warehouse Rack---Cantilever Rack

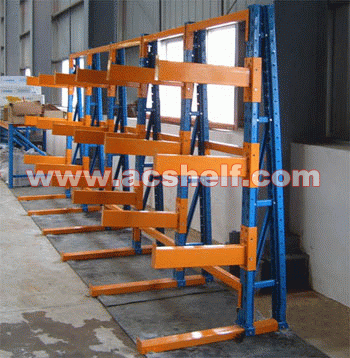

Cantilever Rack
Enlarge The Picture

=specifications=

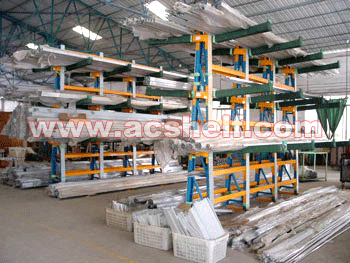

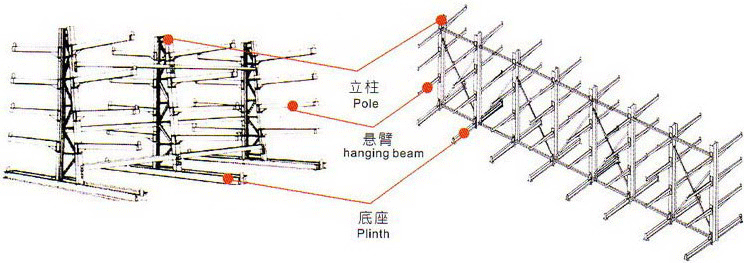

Composed of upright post, cantilever beam and bracing. It is ideal for storing long, unwieldy items, such as profiles, tubes, plates and so on.This is achieved by eliminating obstructions in the front of the rack and providing a clear opening in the front of the rack in lengths as long as desired. Can also be decked for storage of items smaller than the spacing between towers. It is widely used in mechanical manufacture and architecture material supermarket enterprises.




Loading capacity for light duty rack(Kg)

Height option:2000/2500/3000mm

Loading capacity for heavy duty rack(Kg)

Height option:2000/2500/3000/3500mm

Length of hanging arm Single side Double sides Single side Double sides
400 2800 6000 4300 9000
500 2400 5000 3400 7400
600 2000 4000 3000 6300
700 1600 3800 2500 5400
800 1500 3000 2200 4800
